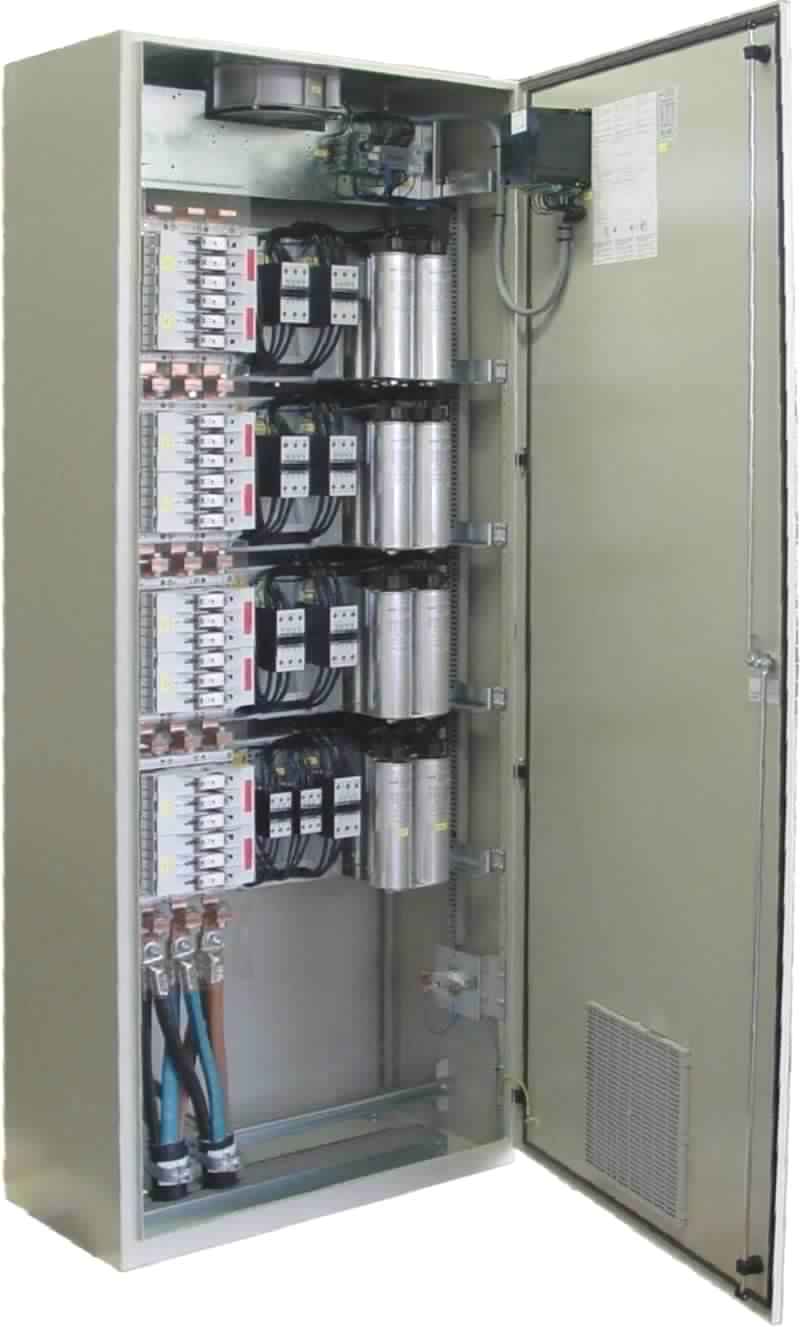

Power factor correction panel

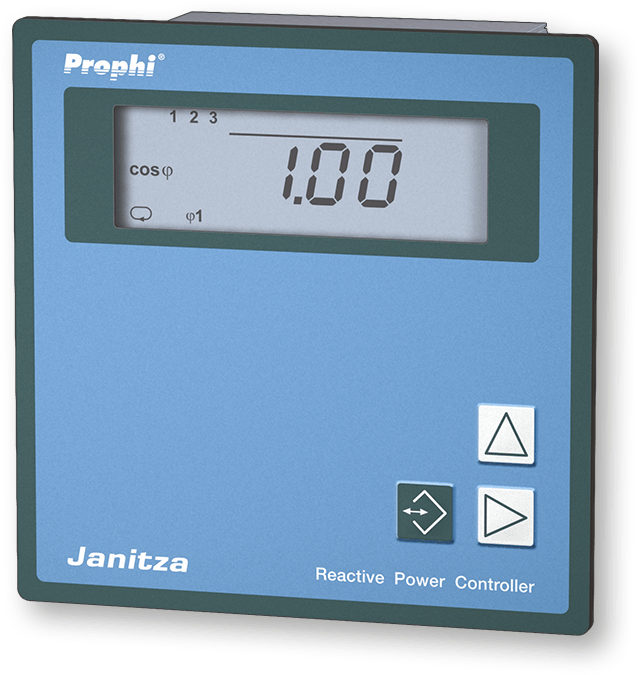

      Power factor (cos Φ)

  • The cosine of the angle of phase displacement between current and voltage
    =p/s [W] / [VA].  Cos Φ

    Our company provides the following tasks:

  • The measurements to determine he suitable power required the ability to improve the power factor

  • Design power factor panel

  • Industry the panel in our factory

  • Installed for the client

  • Follow-up the panel during the warranty period

  • Repair of all power factor correction panel

    Why correct power factor?

  • The reactive current circulating between the utility company´s generator and the consumer converts electrical energy into heat in the power distribution system, and there is an additional load on generators, transformers, cables and switchgear. Energy losses and voltage drops are incurred. If there is a high
    Proportion of reactive current, the installed conductor cross sections cannot be fully utilized for transmitting Use ful power, or must be appropriately over dimensioned. From the utility company’s standpoint, a poor power factor increases the investment and maintenance costs for the power distribution system, And these additional costs are passed on to those responsible, i.e. those power consumers with poor power factors. A meter for reactive energy is therefore installed in addition to the one for active energy.

    Technical Specifications:

  • Low voltage panel manufactured according to standard specifications, according to the technical assets of the industry and made of slabs of black-rolled sheet to cool

  • Based drawings before starting the implementation. High ( IP)  rubber sealing to prevent the entry of dust and water to achieve the degree of protection required

  • Electro static painted gray granular (RAL7032)

  • installed on insulators to withstand the mechanical stresses and capabilities according to the specifications required so that no more than (2) A/ mm

  • Neutral and earth bars equivalent to 50% of the area of ​​the main bars

  • The indicator lamp and measurement instrument install in front doors of the cells

  • Rosetat and control wires numbered and widowed in accordance with the drawings of the Executive
